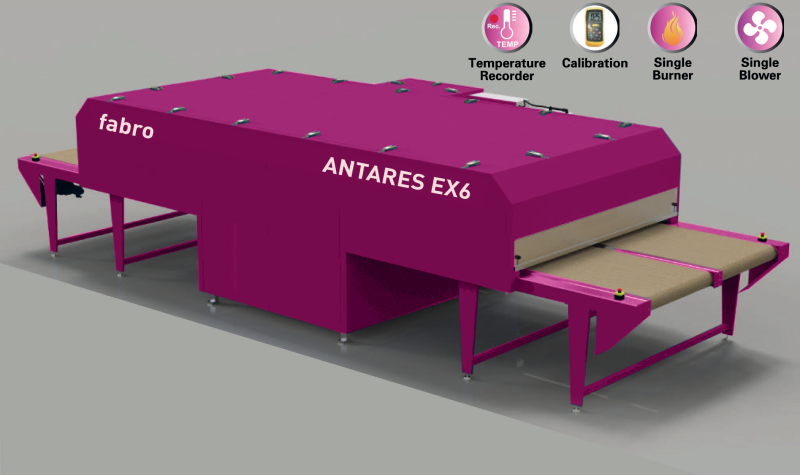

ANTARES is an electrical dryer for every kind of screen printing types including plastisols, water-based inks and discharge. Solid state temperature control technology. 40’’ IR heating zone with quartz tubes at the entry side. Single and double belt options are available.
| Model | Belt Width (m) | Infeed& Outfeed (m) | Heat Chamber (m) | Total Length (m) | Heating Power (kVA) | Power | Gas Type |
|---|---|---|---|---|---|---|---|
| EX4 Single Belt | 1.6, 1.7, 1.8, 1.9, 2.0 | 1 | 3, 3.75,4.5 | 5, 5.75, 6.5 | 42 | 380/415 VAC, 3 pH, 84A, 50/60 Hz, 55 kW | 9 kVA |
| EX4 Double Belt | 2x0.81, 2x0.91, 0.81+1.21 | 1 | 3, 3.75,4.5 | 5, 5.75, 6.5 | 42 | 380/415 VAC, 3 pH, 84A, 50/60 Hz, 55 kW | 9 kVA |
| EX7 Single Belt | 1.6, 1.7, 1.8, 1.9, 2.0 | 1 | 7.5, 8.25, 9.0 | 9.5, 10.25, 11 | 2x42 | 380/415 VAC, 3 pH, 147A, 50/60 Hz, 97 kW | 9 kVA |
| GX7 Double Belt | 2x0.81, 2x0.91, 0.81+1.21 | 1 | 7.5, 8.25, 9.0 | 9.5, 10.25, 11 | 2x42 | 380/415 VAC, 3 pH, 147A, 50/60 Hz, 97 kW | 9 kVA |
